Jupyter Notebooks

What are Jupyter Notebooks?

Jupyter Notebooks are a web-based, interactive computing tool for capturing the whole computation process: developing, documenting, and executing code, as well as communicating the results. They support interactive data science and scientific computing across all programming languages, including Python.

How do Jupyter Notebooks Work?

An open notebook has exactly one interactive session connected to a kernel which will execute code sent by the user and communicate back results. This kernel remains active if the web browser window is closed, and reopening the same notebook from the dashboard will reconnect the web application to the same kernel. The kernel’s state, including imported libraries and declared variables, persists between cells.

How do You Access Jupyter Notebooks?

  1. The Jupyter website allows you to download Jupyter Notebook and/or try it in your browser.

  2. The TACC Analysis Portal allows TACC users to run Jupyter through your browser on Frontera, Longhorn, Maverick2, or Stampede2, so long as you have an allocation on that system.

  3. The TACC DesignSafe Portal allows anyone with a TACC account to use Jupyter. (Log in, choose Workspace => Tools and Applications => Jupyter)

  4. TACC provides small, short lived Jupyter notebooks to anyone with a TACC account via the TACC Cloud.

  5. Public Jupyter notebooks are available through sites like Google Colaboratory.

  6. Service exist to share notebooks in a browser including Binder.

Interacting with Jupyter Notebooks

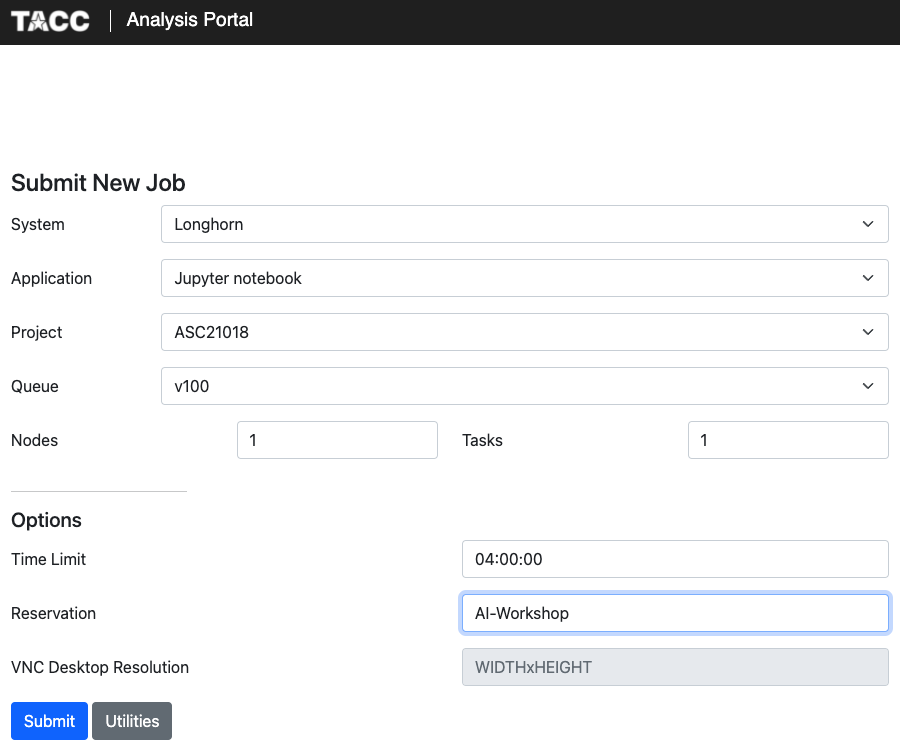

First, choose one of the methods above and start a new Jupyter Notebook. I will be following method #2 - the TACC Analysis Portal. For this workshop, use the following settings:

../_images/vis_portal_filled.png

The original, and more common “tree” interface to Jupyter will display a file browser (in this case to files in your Longhorn /home directory):

../_images/jupyter_overview_1.png

New Python3 kernels and Terminals can be launched by clicking the “New” button on the right side:

../_images/jupyter_overview_2.png

Running kernels can be accessed through the “Running” tab on the top. By default, the Jupyter Notebooks will be saved in your /home directory with a .ipynb extension. (Re-opening the notebook will open all the cells, and restore the state of the kernel - more on this later):

../_images/jupyter_overview_3.png

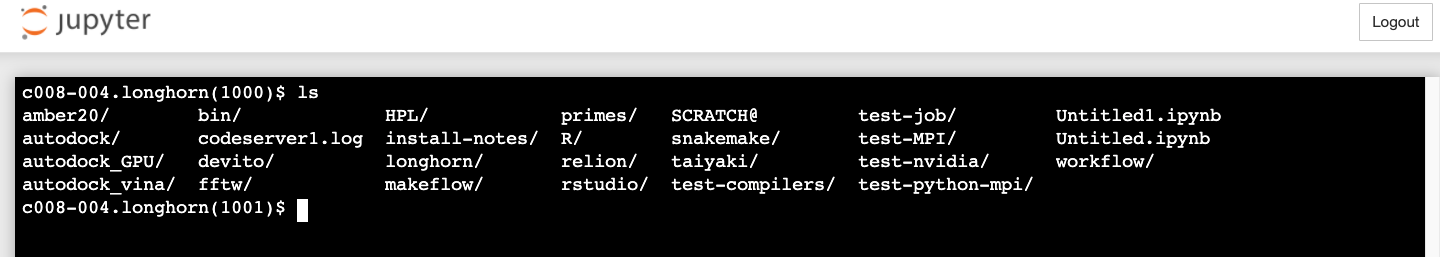

The terminal is a standard, fully-functional terminal. Very useful for debugging and interacting with files / directories. For example, you can easily wget a data set or unzip a file:

../_images/jupyter_overview_4.png

The Jupyter notebook consists of a toolbar (top) and an unlimited number of cells (bottom):

../_images/jupyter_overview_5.png

Cells can be either “code cells” or “markdown cells”. Code cells allow you to enter and run code. Markdown cells use the markdown markup language to comment on or narrate what is happening in the notebook:

../_images/jupyter_overview_6.png

Miscellaneous Tips and Tricks

Shortcuts:

  • Shift+Enter: run cell

  • Ctrl+Enter: run cell in place

  • Alt+Enter: run cell, insert below

  • Esc / Enter: toggle between command and edit mode

Run a command within a Jupyter notebook (prefix with !):

In[]: ! pip list
In[]: ! pip install --user names

The file browser is not (by default) aware of your /work or /scratch directories on Longhorn. The easiest thing to do is open up a terminal and make symbolic links to your /work and /scratch directories in your /home directory

[longhorn]$ cd
[longhorn]$ pwd
/home/012345/username
[longhorn]$ ln -s $WORK WORK
[longhorn]$ ln -s $SCRATCH SCRATCH

Exercise

Make a copy of a previously-prepared demo notebook in your /home directory. Open the notebook with Jupyter. Execute the cells within and think about why it is organized the way it is. To copy the notebook:

[longhorn]$ cd     # cd to /home directory
[longhorn]$ cp /scratch/03439/wallen/AI-Drug-Discovery/notebook_demo.ipynb .

Once you run each cell, save the notebook with a new name. Re-open the original notebook as well as the new notebook. Does saving the notebook save the state of the kernel as well?
